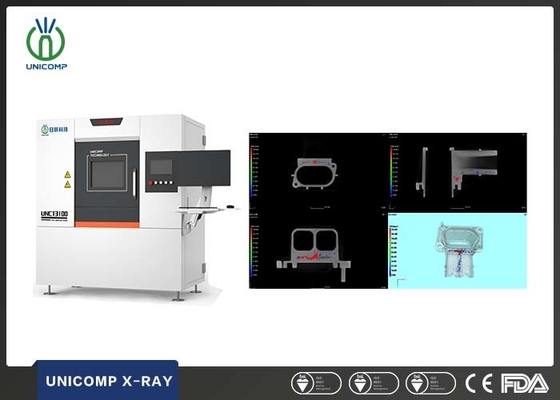

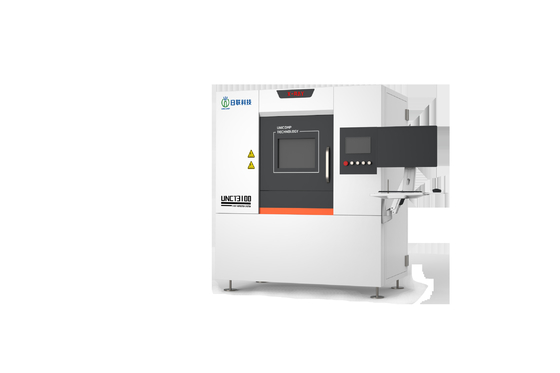

Máquina de TC de 160 KV Unicomp UNCT3100 para ensaios 3D não destrutivos de cilindros / fundições metálicas / peças aeroespaciais

Máquina de TC de 160 KV Unicomp UNCT3100 para ensaios 3D não destrutivos de cilindros / fundições metálicas / peças aeroespaciais
Máquina de TC de 160 KV Unicomp UNCT3100 para ensaios 3D não destrutivos de cilindros / fundições metálicas / peças aeroespaciais

Imagem Grande :  Máquina de TC de 160 KV Unicomp UNCT3100 para ensaios 3D não destrutivos de cilindros / fundições metálicas / peças aeroespaciais

Detalhes do produto:
Lugar de origem: China
Marca: UNICOMP
Certificação: CE
Número do modelo: UNCT3100
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 conjunto
Preço: Can Negotiate
Detalhes da embalagem: Caixa de madeira, à prova d'água, anti-colisão
Tempo de entrega: 10 dias
Termos de pagamento: T/T, L/C
Habilidade da fonte: 10 SETS POR MÊS
Descrição de produto detalhada
Impressão: 1600*1040*1830 mm Fornecimento de energia: 380 AC/50 Hz
Detector: Silicone amorfo Consumo de energia: 9KW
Área de detecção efetiva: 427*427[mm] Max.intervalo de detecção: φ500*500[mm]
Tipo do tubo de raio X: Fechado Peso de Max.Loading: 10 kg
Ponto focal mínimo: 0.5 Peso da máquina: 4 000 kg
Destacar:

Máquina de TC de ensaio não destrutivo 3D

,

Máquina de TC de fundições metálicas

,

Máquina de tomografia computadorizada de 160 KV

160KV CT machine Unicomp UNCT3100 for cylinder,metal castings, aerospace parts 3D non-destructive testing

Product Description:



The UNCT3100 stands as a compact yet powerful industrial CT inspection system, renowned for its high precision capabilities. It is a versatile tool, adaptable to diverse industries' unique inspection needs. Primarily utilized for meticulous examination of small metal castings, non-ferrous metals, lithium battery cells, intricate chips, electronic components, geological samples like rocks and cores, soils, fossils, advanced composite materials, delicate biological specimens, and a multitude of other detection applications.

Features:

  • Functions: The system boasts a dual imaging capability, encompassing both DR and CT detection, alongside 3D scanning, data reconstruction, and comprehensive analysis.
  • Operation: The control system features a user-centric design, ensuring effortless operation. Even with minimal training, users can swiftly master its functionality.
  • Cost-Effectiveness: Tailored specifically for small product inspection, it incorporates a highly integrated design that packs a full range of functions into a compact structure, offering exceptional value for money.
  • Safety: Ensuring a high level of protection, the radiation dose emitted is significantly below national safety standards. Additionally, it incorporates multiple security measures to further safeguard users and the environment.

Technical Parameters:

Product Name: 160KV CT machine Unicomp UNCT3100 for cylinder,metal castings, aerospace parts 3D non-destructive testing
Dimensions: 1600mm*1040mm*1830mm(L*W*H)
Machine Weight: 2000kg
Pixel Matrix: 3072*3072
Pixel Size: 139μm
Voltage: 160kV
X-ray tube type
Split tube
Training: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Services: Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others.





Applications:

The Industrial X Ray Machine product can be used across a variety of industries and applications. Here are some of the occasions and scenarios where the product can be used:



  • Defect Detection: Industrial CT scanning technology precisely pinpoints internal imperfections such as cracks, voids, and inclusions, all without compromising the integrity of the sample, thereby safeguarding product quality standards.
  • Wall Thickness Analysis: Accurately quantifies variations in wall thickness and identifies gaps, empowering the fine-tuning of intricate components for optimal performance.
  • CAD Comparison: Validates the accuracy of CAD designs by juxtaposing them against the actual geometric configurations of parts, revealing discrepancies and paving the way for design enhancements.
  • Metrology/Coordinate Measuring: Offers exceptional dimensional accuracy in measurements, augmenting traditional CMMs for a more comprehensive approach to quality assurance.
  • Fiber Composite Analysis: Detects defects like delamination, porosity, and resin cracks within composite materials, bolstering their reliability and longevity.
  • Visualization of Transfer Phenomena: Enables the clear depiction of fluid dynamics, heat distribution, and other transfer processes within materials and structures, supporting advanced design optimization.
  • Structural Mechanics Simulation Integration: When paired with simulation software, it forecasts stress levels, deformations, and failure scenarios, guiding the creation of stronger yet lighter designs.
  • Reverse Engineering Solutions: Transforms existing physical parts into highly accurate CAD models, streamlining replication efforts, redesign initiatives, and reverse-engineering projects.

Support and Services:

Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.

FAQ:

Q: How about the package? Is it safe during the delivery?

A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.



Q: Do you provide the Warranty? How about the after-sales service?

A: 1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.



Q: If we come to your factory if you will provide free training?

A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.



Inspection Images:

Máquina de TC de 160 KV Unicomp UNCT3100 para ensaios 3D não destrutivos de cilindros / fundições metálicas / peças aeroespaciais 0
